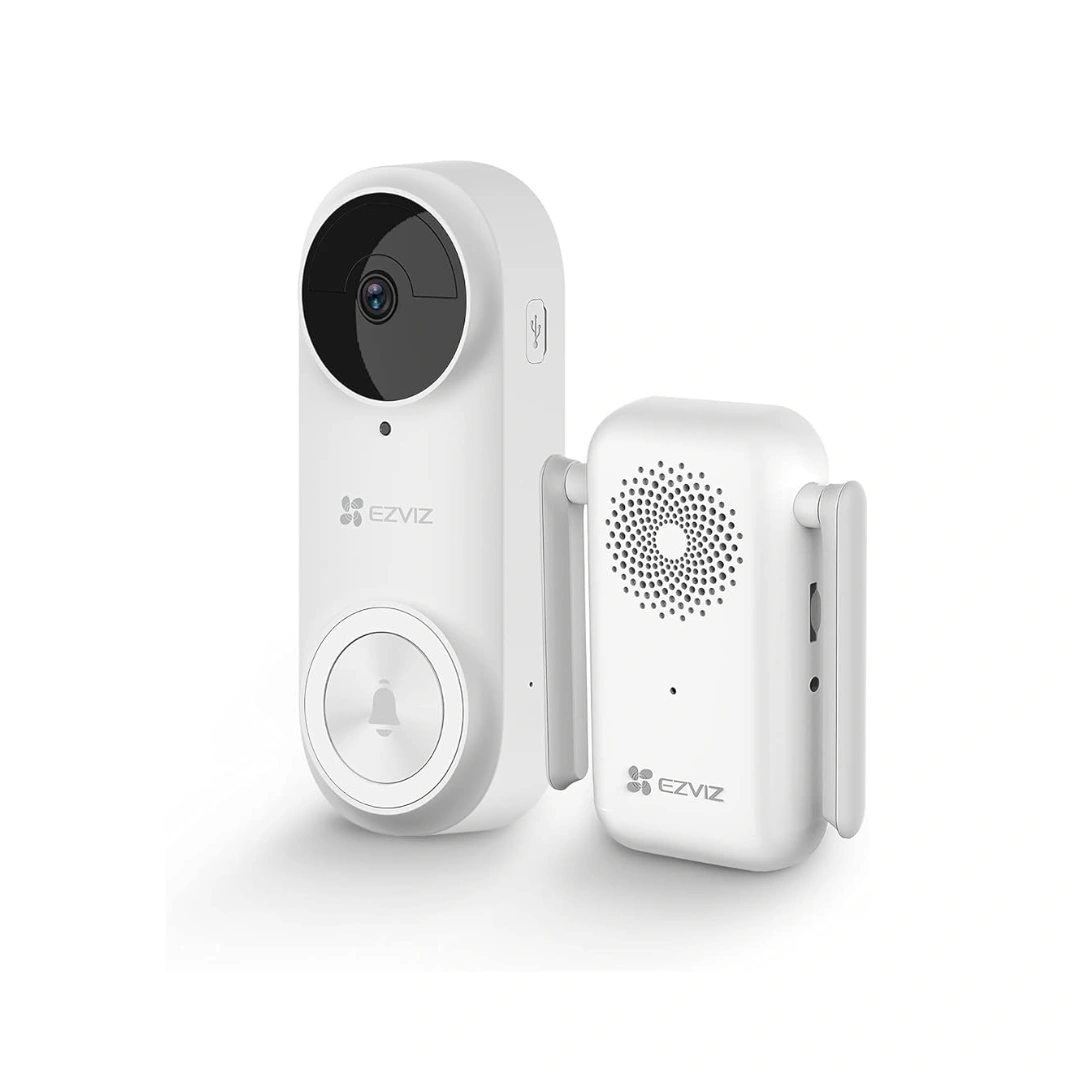

Ezviz DB2C Kit Wire-Free Video Doorbell with Chime

Key Features

Feature Details
Resolution 1080p (1536 × 1536 FHD)
Field of View 160° Vertical Ultra-Wide
Motion Detection Advanced PIR Person Detection

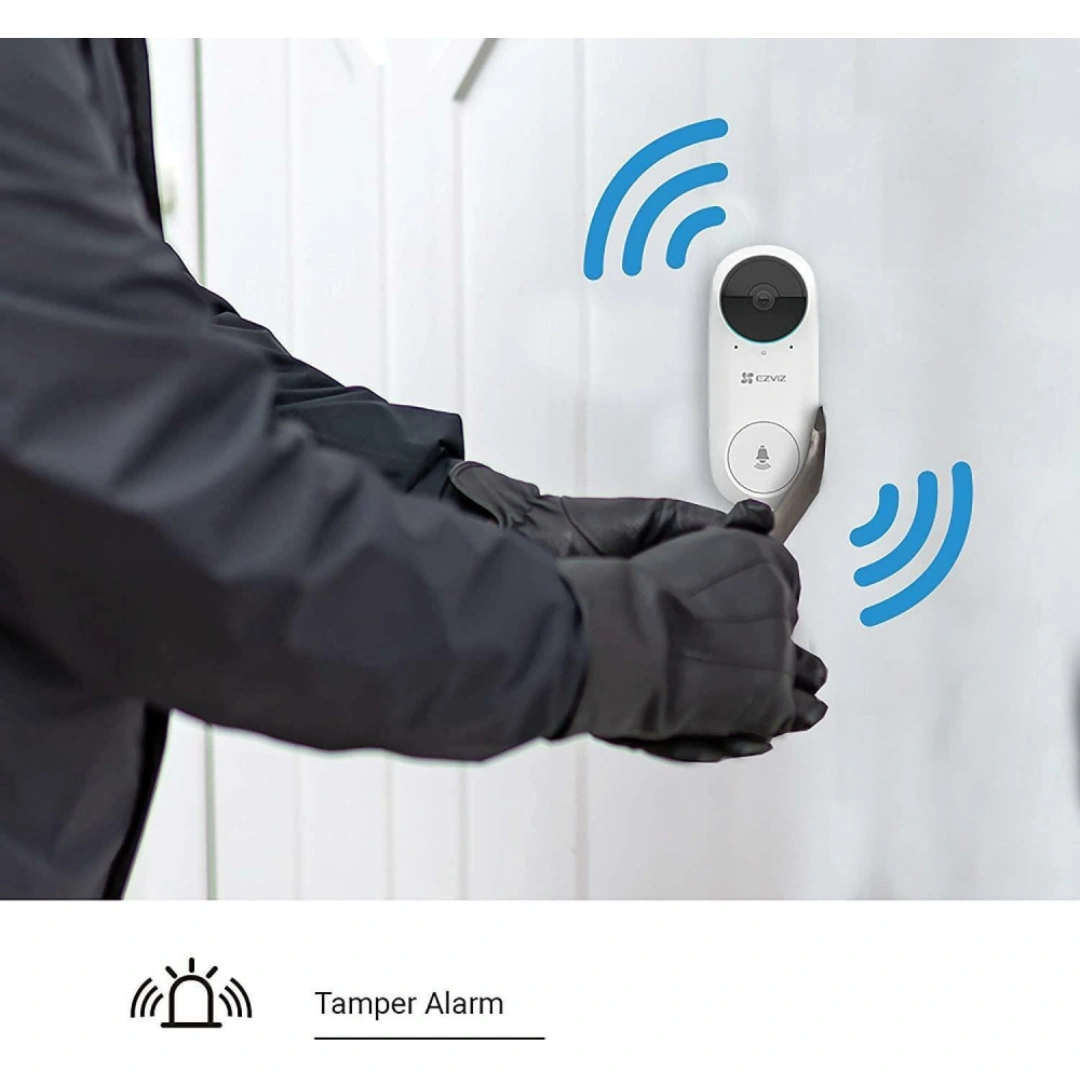

Alarm System Tamper Alarm (Sound & Light Alerts)
Night Vision Up to 6 m (20 ft)
Video Compression H.265 / H.264
Battery 5200 mAh Rechargeable Lithium
Audio Two-Way Talk (Mic & Speaker)
Chime Wi-Fi Chime Included
Storage Supports MicroSD Card up to 256GB

Model Information

Category Details
Model CS-DB2C-A0-1E3WPBR

Camera

Feature Details
Image Sensor 1/2.7" Progressive Scan CMOS (Low Light Supported)
Lens 2.2 mm @ F2.4
Viewing Angle 160° Vertical
Day/Night Mode IR-Cut Filter with Auto Switching
IR Night Vision Up to 6 m (20 ft)

Video

Feature Details
Max Resolution 1536 × 1536
Frame Rate Up to 15 fps (Adaptive)
Video Compression H.265 / H.264
Noise Reduction 2D / 3D DNR

PIR Sensor

Feature Details
Detection Angle 100°
Detection Range Up to 5 m (16.4 ft)
Sensitivity Adjustable (High / Medium / Low)

Audio & Interface

Feature Details
Audio Input Built-in High-Sensitivity Microphone
Audio Output Built-in High-Power Speaker
Reset Button Yes

Smart Functions

Feature Details
Smart Alarm PIR Human Detection
Tamper Alarm Anti-Dismantling Alert with Mobile Notification
Intercom Long-Distance Two-Way Video Communication

Network & Wi-Fi

Feature Details
Protocol EZVIZ Cloud Proprietary
Wi-Fi Standard IEEE802.11 b/g/n
Frequency 2.4 GHz
Security WEP / WPA / WPA2 / WPA-PSK
Max Speed Up to 150 Mbps

General

Feature Details
Operating Temp -10°C to 45°C
Humidity ≤ 95%
Size 146 × 60 × 34 mm
Weight 206 g
Protection No IP Rating

Power

Feature Details
Battery 5200 mAh Rechargeable Lithium
Power Supply DC 5V ±10%
Power Consumption Max 7.5W

Chime Specifications

Feature Details
Size 100 × 54 × 37 mm
Power Supply AC 100–240V
Wi-Fi IEEE802.11 b/g/n
Audio Output 65 dB (within 3 meters)
Storage Supports TF Card up to 256GB
Weight 120 g

74,00 د.ا
